Brands:Washroom Accessories
Model:

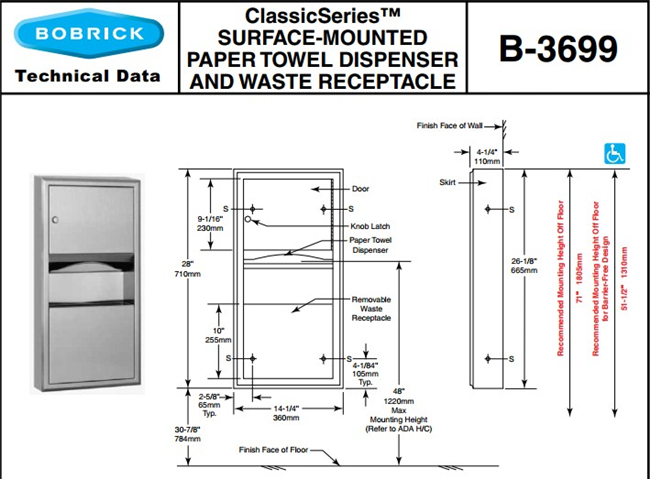

Description:Bobrick B-3699 Surface-Mounted Paper Towel Dispenser and Waste Receptacle
Materials:
Cabinet . 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish.
Flange . 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Drawn and beveled, one-piece, seamless construction.
Skirt . 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin-finish.
Door . 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Secured to cabinet with a full-length, stainless steel piano.hinge. Equipped with a knob latch.
Paper Towel Dispenser . 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Capacity: 350 C-fold or 475 multifold paper towels.
Waste Receptacle . 18-8 S, type-304, Heavy-gauge stainless steel with satin-finish. Top edges are hemmed for safe handling. Friction catch. Capacity: 2-gal. (7.6-L).
Operation:
Paper towel dispenser will dispense C-fold or multifold paper towels without adjustment. Rounded towel tray has hemmed opening to dispense paper towels without tearing. Waste receptacle is retained in cabinet by a friction catch and is removable for servicing.
Installation:
Mount unit on wall with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle bolts or expansion bolts. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between unit and finish face of wall.
