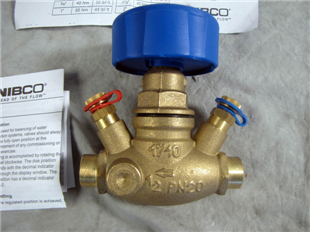

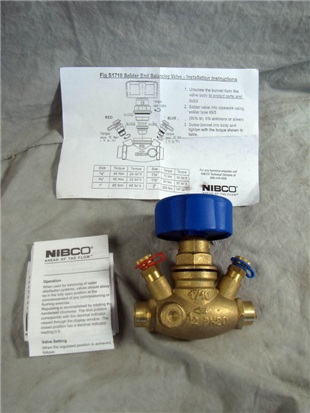

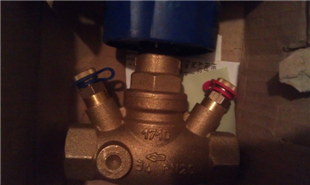

Circuit Balancing Valve – DZR Brass, Globe, Threaded T-1710
Brands:NIBCO VALVE
Model:
Description:Circuit Balancing Valve – DZR Brass, Globe, Threaded T-1710
The NIBCO® circuit balancing valve features a dezincification resistant brass body, bonnet and trim. It is a “T” pattern globe style valve offering improved flow measurement accuracy. With unequalled regulation performance and accuracy across all valve positions, the valve offers positive shutoff and isolation. The valve position is clearly visible in the handwheel display window.
The memory stop feature provides repeatable regulation and control. The valve is recommended for use in HVAC and plumbing systems. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Whether a system is designed for heating, cooling or water distribution it must be properly adjusted and balanced for optimum performance. A balanced system with correct flow in boilers and chillers ensures a comfortable indoor climate. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO 5-year 125% limited warranty.
Valve pressure rating 240 psi to 250°F
EPDM O-ring
Non-rising stem
Two integral test ports
Female NPT thread end connection
Use in U.S. drinking water applications is prohibited after January 3, 2014
ANSI B1.20.1 (NPT ends)
Size range ½” to 2”
