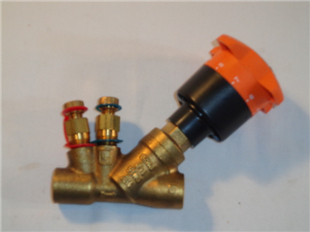

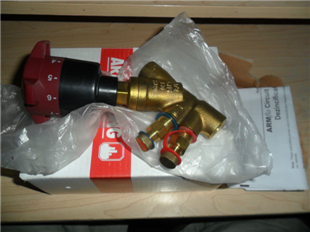

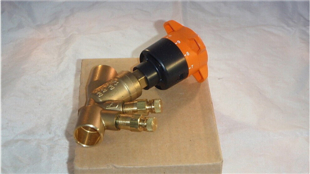

Balancing Valve - Manual, DZR Brass, Solder End S-1810
Brands:NIBCO VALVE
Model:
Description:Balancing Valve - Manual, DZR Brass, Solder End S-1810
The NIBCO® Coil-Connect™ fixed orifice manual balancing valves are ideally suited for use in HVAC and other mechanical applications that require a balanced system providing optimum flow. Each valve has 2 integral drilled and tapped ports with PT ports installed. Each balancing valve has an integral memory stop feature to retain settings.
The NIBCO Coil-Connect™ manual balancing valve is constructed of dezincification resistant materials. This oblique pattern globe valve provides finite control and fixed point measurement through the venturi. Please refer to NIBCO technical data sheets and IOM Manuals for engineering and installation information. Whether a system is designed for heating, cooling or water distribution it must be properly adjusted and balanced for optimum performance. A balanced system ensures a comfortable indoor climate. Choose NIBCO® Coil-Connect™ valves, fittings and accessories for the most specified, versatile and economical option in commercial HVAC and mechanical applications. NIBCO® Coil-Connect™ components are backed by the NIBCO 5-year 125% limited warranty.
Maximum pressure rating 125psi @ 175°F
Maximum temperature rating 250° F @ 85psi
DZR Brass body and internal components
Disc Seat - PTFE
EPDM O-Ring
Solder ends per ANSI B16.22
Use in U.S. drinking water applications is prohibited after January 3, 2014
Size range ½” to 2”
Previous:Balancing Valve - Manual, DZR Brass, Threaded End T-1810
Next:Circuit Balancing Valve – DZR Brass, Straight Pattern Globe, Solder S-1709
