Brands:Chicago Faucets
Model:

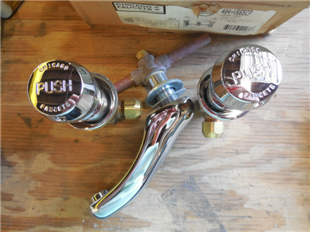

Description:Chicago Faucets 404-V665ABCP Concealed Hot and Cold Water Metering Sink Faucet
Model #: 404-V665ABCP
8" Fixed Centers

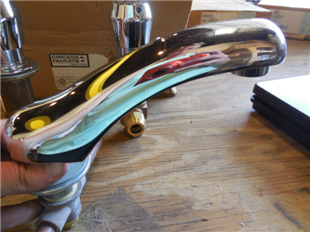

5" Center to Center Rigid Cast Brass Spout
E12VPAB - 2.2 GPM (8.3 L/min) Vandal Proof Aerator
665-PR - 1-3/4" Vandal Proof MVP Metering Push Handle
MVPAB - MVP Metering Adjustable Cycle Time Closure Cartridge
1/2" NPSM Supply Inlets and Coupling Nut for 3/8" or 1/2" Flexible Riser
Chrome Plate Finish
Weight: 5.750lbs
Package Dimensions: 11.25"L x 9.25"W x 3.25"H
ECAST® construction with equal to or less than 0.25% lead content by weighted average
Product Type
___________________________________________________
Deck Mounted 8" Fixed Centers Concealed Hot and Cold
Water Metering Sink Faucet
Features & Specifications
___________________________________________________
• 8" Fixed Centers
• 2.2 GPM (8.3 L/min) Vandal Proof Aerator
• 1-3/4" Vandal Proof MVP Metering Push Handle
• MVP Metering Adjustable Cycle Time Closure Cartridge
• 1/2" NPSM Supply Inlets and Coupling Nut for 3/8" or 1/2"
Flexible Riser
• 5" Center to Center Rigid Cast Brass Spout
• ECAST® design provides durable brass construction with
total lead content equal to or less than 0.25% by weighted
average
• CFNow! Item Ships in 5 Days
Performance Specification ___________________________________________________
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140oF
Warranty
___________________________________________________
• Lifetime Limited Faucet Warranty
• 1-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
___________________________________________________
• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• California Health and Safety Code 116875 (AB1953-2006)
• Vermont Bill S.152
• NSF/ANSI 372 Low Lead Content
• ADA ANSI/ICC A117.1
404-V665ABCP
Manual and Metering Faucets
Architect/Engineer Specification ________________________________________________________________________________________________________
Chicago Faucets No. 404-V665ABCP, Deck Mounted 8" Fixed Centers Concealed Hot and Cold Water Metering Sink Faucet, Chrome Plated
solid brass construction. 5" Center to Center Rigid Cast Brass Spout. 2.2 GPM (8.3 L/min) Pressure Compensating Softflo Vandal Proof Aerator.
1-3/4" Metal Vandal Proof MVP Metering Push handle(s) with Blue and Red Buttons. MVP™ self-closing, auto-timed metering cartridge,
adjustable run time from 2 to 15 seconds, opens with push, 0.20 max gallon/cycle. 1/2" NPSM Supply Inlets and Coupling Nut for 3/8" or 1/2"
Flexible Riser. ECAST® construction with less than 0.25% lead content by weighted average. Secondary Control Valve: 5" Center to Center
Rigid Cast Brass Spout. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME
A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9 by CSA, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill
S.152, and NSF/ANSI 372 Low Lead Content.
