Brands:Washroom Accessories
Model:

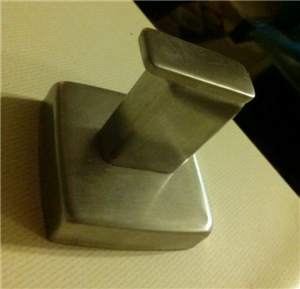

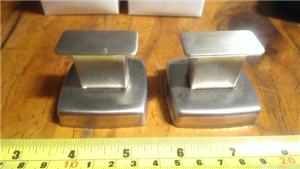

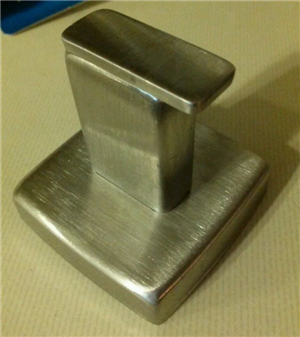

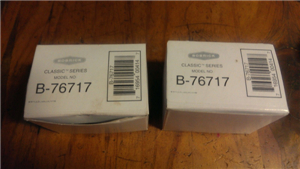

Description:Bobrick B-76717 surface-mounted robe hook
materials:
Flange & Support Arm — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 18-gauge (1.2mm) stainless steel
mounting bracket. All-welded construction. Secured to wall plate with a stainless steel setscrew.
Concealed Wall Plate — 18-8 S, type-304, 19-gauge (1.0mm) stainless steel.
Cap — 18-8 S, type-304, 14-gauge (2.0mm) stainless steel. Welded to the support arm.
installation:
To remove concealed wall plate from back of flange and mounting bracket, loosen setscrew. Mount wall plate so prongs are at
top; secure with two sheet-metal screws, furnished by manufacturer, at points indicated by an S. Engage mounting bracket onto
prongs of wall plate, then secure unit into position by tightening setscrew at bottom of flange.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with
sheet-metal screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished,
or provide 1/8" (3mm) toggle bolts or expansion bolts.
For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts,
nuts, and washers. For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be
secured.
specification:
Surface-mounted robe hook shall be type-304 stainless steel with __________ (insert one: bright polished or satin) finish.
Flange and support arm shall be 22 gauge (0.8mm) and equipped with a concealed, 18-gauge (1.2mm) mounting bracket that is
secured to a concealed, 19-gauge (1.0mm) wall plate with a stainless steel setscrew. Cap shall be 14 gauge (2.0mm), welded to
the support arm. Manufacturer's service and parts manual shall be provided to the building owner/manager upon request.
