Brands:Washroom Accessories
Model:
Description:Bobrick B-824 SureFlo® Automatic, Top Fill Bulk Liquid Soap Dispenser

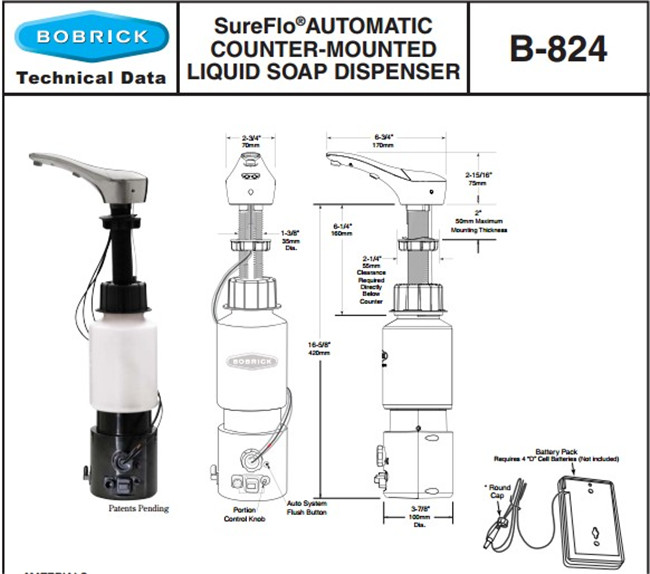

B-824 SureFlo® Automatic, Top Fill Bulk Liquid Soap Dispenser
opERAtioN:
To fill dispenser, insert tip of standard BobKey provided into opening of the concealed locking mechanism in the Spout
Assembly with spout body to disengage door for quick and easy top filling. Lid will rotate open for filling dispenser with bulk
liquid hand soap. Rotate door counter-clockwise to close and lock in place.
To activate dispenser, place hand under spout near the sensor for approximately 1 second. Spout dispenses adjustable amount
(adjustment range approximately .4 to 3 ml.) of liquid hand soap of various viscosities ranging from 100 to 19,000 cP (centipoise).
Designers Note: Bobrick Liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including
liquid and lotion soap, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan.
iNStALLAtioN:
Unit is designed for installation into counters up to 2" (50mm) maximum thickness with 1-3/8" (35mm) diameter mounting
hole. Unit may be mounted through special hole requisitioned when lavatory is ordered from manufacturer (specify hole
location). Recommended mounting location is between 6" to 8" (150 to 205mm) from back wall and 3" (75mm) from the sink
rim to the center of the mounting hole. Minimum 18" (455mm) vertical and 5" (125mm) diameter clearance required for soap
bottle and bottom housing below mounting hole. Mount Battery Pack (mounting hardware located inside Battery Pack) on
back or side wall in a convenient location nearest dispenser for ease of access to replace batteries. Install 4 “D” cell high quality
batteries (not included) in battery pack and insert plug in power port on bottom housing.
Designers Note: For sinks with rim over the counter area, ensure that rim does not come in contact with activation area. Please
refer to 824-191 Installation Instruction.
SpEciFicAtioNS:
Automatic, Counter-Mounted Liquid Soap Dispenser shall dispense adjustable amount (.4 to 3 ml) of commercially marketedall-purpose bulk liquid hand soaps of various viscosities. Spout assembly shall be bright polished chrome plated ABS plastic
with integral shank to accommodate up to 2" (50mm) thick counter tops. Unit shall be equipped with oversized funnel shapeopening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LEDndicators to show when unit has been activated and low battery life. Unit shall have IR Sensor located on PC boardhousedin water-resistant ABS plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of falseactivation during hand washing. Portion Control Knob shall allow field adjustment of desired volume of soap dispensed perhand wash. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Battery Pack uses 4 “D” cell batteries (not included) providing a battery life of up to 200,000 cycles or 2 years. Optional A/C adapteravailable, order Part No. 3974-57.
