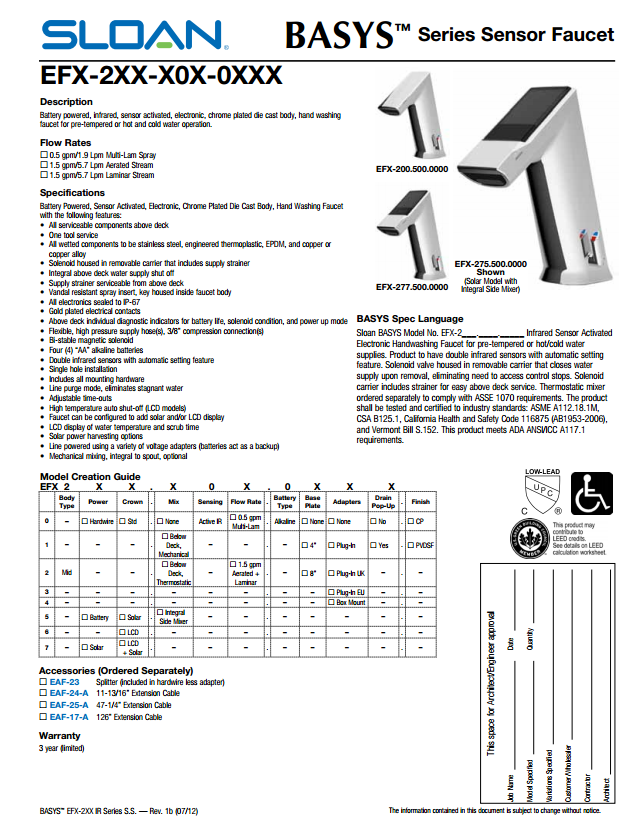

Description
Battery powered, infrared, sensor activated, electronic, chrome plated die cast body, hand washing
faucet for pre-tempered or hot and cold water operation.
Flow Rates
￡ 0.5 gpm/1.9 Lpm Multi-Lam Spray
￡ 1.5 gpm/5.7 Lpm Aerated Stream
￡ 1.5 gpm/5.7 Lpm Laminar Stream
Specifications
Battery Powered, Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand Washing Faucet
with the following features:
• All serviceable components above deck
• One tool service
• All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or
copper alloy
• Solenoid housed in removable carrier that includes supply strainer
• Integral above deck water supply shut off
• Supply strainer serviceable from above deck
• Vandal resistant spray insert, key housed inside faucet body
• All electronics sealed to IP-67
• Gold plated electrical contacts
• Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode
• Flexible, high pressure supply hose(s), 3/8” compression connection(s)
• Bi-stable magnetic solenoid
• Four (4) “AA” alkaline batteries
• Double infrared sensors with automatic setting feature
• Single hole installation
• Includes all mounting hardware
• Line purge mode, eliminates stagnant water
• Adjustable time-outs
• High temperature auto shut-off (LCD models)
• Faucet can be configured to add solar and/or LCD display
• LCD display of water temperature and scrub time
• Solar power harvesting options
• Line powered using a variety of voltage adapters (batteries act as a backup)

• Mechanical mixing, integral to spout, optional
