Brands:Washroom Accessories
Model:

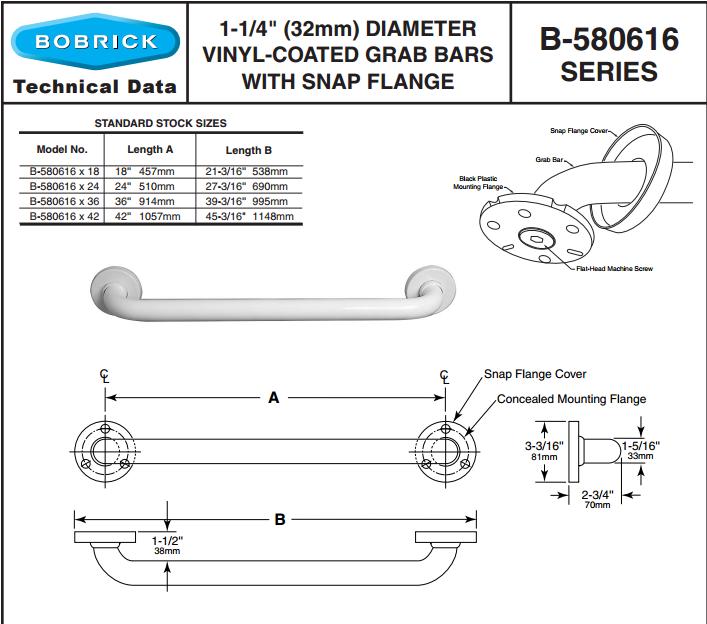

Description:NEW B-580616 Diameter Vinyl-Coated Grab Bar with Snap Flange
MATERIALS:
Grab Bar — Zinc-plated 1" (25mm) diameter steel tube with 1/8" (3mm) thick white vinyl antibacterial, biocompatible, and warm-to-the-touch coating with glossy finish. 1-1/4" (32mm) outside diameter. Clearance between the Grab Bar and wall is 1-1/2"(38mm).
Concealed Mounting Flange lyamid— Poe 6 -fiberglass reinforced nylon with glossy finish; 3/16" (4mm) thick end Flange with
four holes for attachment to wall. Stainless steel flat-head machine screw will seat in conical recess of the Flange.
Snap Flange Covers — Polyamide 6 -fiberglass reinforced nylon with glossy finish, 1/8" (3mm) thickness and 3-1/4" (83mm)diameter.
STRENGTH:
Bobrick grab bars that provide 1-1/2" (38mm) clearance from wall B-580616 x 18, B-580616 x 24, B-580616 x 36, B-580616 x 42 can withstand loads of 450 pounds (204 kg) if properly installed. B-580616 x 42 can withstand loads of 330 pounds (150 kg) when properly installed, complying with accessible design (including ADAAG in the U.S.A.) for structural strength.
