MATERIALS:

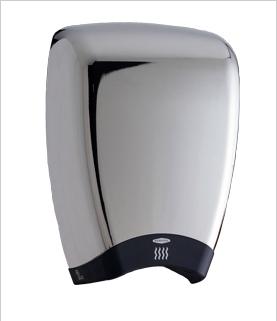

Cover — Aluminum die-casting with high-gloss epoxy finish electrostatically applied. White (B-7180) and Chrome (B-7188).
Cover projects no more than 4" (100mm) from wall and is secured to mounting base with two vandal-resistant, recessed hexscrews.
Air-Inlet Grill — One-piece vandal resistant UL 94-5V black plastic.
Mounting Base — Equipped with four 0.236" (6mm) diameter mounting holes and one 7/8" (22mm) diameter holes suitable
for between-wall wiring.
Motor/Fan — Thermally protected, Universal, 1/7 hp, 8000 rpm motor, on resilient mounting. Shielded ball bearings at both
ends. Double-inlet forward curved impeller, providing air volume of 120 m3/hr (71cfm); air velocity of 35m/s (7000 lfm).
Heating Element — Coiled Nichrome heating element mounted on a mica frame, protected by integral automatic thermal
overload device. To heat air without hot spots and remain inaccessible to vandals.
Electronic Control — Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across
path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately
1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening. After inanimate object is removed,
electronic sensor automatically resets itself and dryer operates normally.
