Product Materials
SPOUT ASSEMBLY: chrome-plated plastic. Has LED light indicators: Yellow
flashing light = low battery. Red flashing light = low soap.
MOTOR ASSEMBLY: plastic. Soap cartridge size is set for 1000-shot (27-oz.)
bottle. If using 2000-shot (54-oz.) bottle, move switch located under rubber
plug (by red reset button) to 2K. Once soap cartridge is installed, press refill
reset button (red). This will automatically prime the soap refill bottle and initiate
counting mechanism.
BATTERY BOX: plastic, holds 4 “D”-cell alkaline batteries included with Starter
Kit 6315-KT0000.
Operation
Place hands under soap spout and hold for approximately two seconds. Spout
will dispense lotion soap with moisturizer.
Soap Refills
Bradley offers lotion soap with moisturizer. 1000-shot bottle (P19-232B) or
2000-shot bottle (P19-232A) in case quantity only (4 bottles per case). Soap has
a two-year shelf life. Date on bottom of bottle is expiration date. Bottles are
not refillable.
Installation

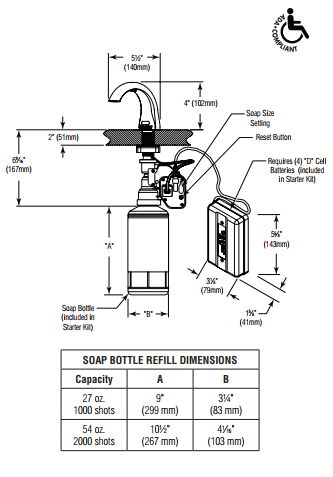

Verify all rough-in dimensions prior to installation. Mount dispenser in 1"
diameter hole in lavatory or countertop 1½" from edge of sink. Shank will
accommodate a maximum counter thickness of 2". Place (4) “D”-cell alkaline
batteries (included in Starter Kit) into battery box. Plug battery box into motor
assembly. Remove white clip from bottom of spout assembly. Insert soap bottle
supply tube through spout assembly. Twist and lock soap bottle onto bottom of
spout assembly. Attach white clip to bottom of spout assembly and top of soap
bottle. Press and release reset (red) button located on spout assembly.
Guide Specification
Sensor-operated soap dispenser spout assembly shall be fabricated of chromeplated
plastic and have LED indicators for low soap and low battery. Soap
dispenser shall be able to dispense 0.027-oz. of lotion soap with moisturizer.
