Brands:Chicago Faucets
Model:

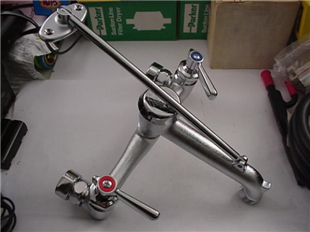

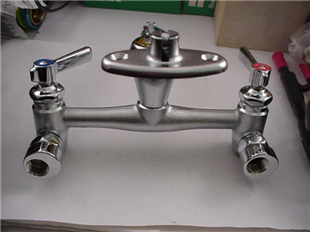

Description:Chicago Faucets 897-RCF Hot and Cold Water Faucet
Hot and Cold Water Faucet
Model #: 897-RCF
8" Body, Adjustable Arms 7 5/8 - 8 3/4"
Vacuum Breaker Spout with Pail Hook and Wall Brace
369-PR - 2-3/8" Lever Handle
XT - Quaturn Compression Operating Cartridge
1/2" NPT Adjustable Female Union Nut Supply Arms
3/4" Male Hose Thread Outlet
Round Wall Escutcheons
Integral Stop Valves for Servicing the product
Atmospheric Vacuum Breaker, Not Intended for Continuous Pressure Applications
Rough Chrome Finish
Weight: 5.862lbs
Package Dimensions: 10.00"L x 9.00"W x 5.00"H
CFNow! - this item ships 3 business days from order acknowledgement
Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
Manual and Metering Faucets
Product Type
___________________________________________________
Wall Mounted 8" Body, Adjustable Arms 7 5/8" - 8 3/4" Hot
and Cold Water Sink Faucet
Features & Specifications
___________________________________________________
• 8" Body, Adjustable Arms 7 5/8" - 8 3/4"
• 2-3/8" Lever Handle
• Quaturn Compression Operating Cartridge
• 1/2" NPT Adjustable Female Union Nut Supply Arms
• 3/4" Male Hose Thread Outlet
• Round Wall Escutcheons
• Integral Stop Valves for Servicing the product
• Atmospheric Vacuum Breaker, Not Intended for Continuous
Pressure Applications
• Vacuum Breaker Spout with Pail Hook and Wall Brace
• Atmospheric Vacuum Breaker, Not Intended for Continuous
Pressure Applications
• CFNow! Item Ships in 5 Days
Performance Specification ___________________________________________________
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140oF
Warranty
___________________________________________________
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
___________________________________________________
• ASME A112.18.1/CSA B125.1
• ADA ANSI/ICC A117.1
897-RCF
Manual and Metering Faucets
Architect/Engineer Specification ________________________________________________________________________________________________________
Chicago Faucets No. 897-RCF, Wall Mounted 8" Body, Adjustable Arms 7 5/8" - 8 3/4" Hot and Cold Water Sink Faucet , Rough Chrome plated
solid brass construction. Vacuum Breaker Spout with Pail Hook and Wall Brace. 2-3/8" Metal Lever handle(s) with Sixteen Point Tapered Broach
and Secured Blue and Red Buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features
square tapered stem. 1/2" NPT Adjustable Female Union Nut Supply Arms. 3/4" Male Hose Thread Outlet. Round Wall Escutcheons. Integral
Stop Valves for Servicing the product. Atmospheric Vacuum Breaker, Not Intended for Continuous Pressure Applications. Atmospheric Vacuum
Breaker, Not Intended for Continuous Pressure Applications. Secondary Control Valve: Vacuum Breaker Spout with Pail Hook and Wall Brace. .
Operation and Maintenance
________________________________________________________________________________________________________
Installation should be in accordance with local plumbing codes. Flush all pipes thoroughly before installation. After installation,
remove spout outlet or flow control and flush faucet thoroughly to clear any debris. Care should be taken when cleaning the
product. Do not use abrasive cleaners, chemicals or solvents as they can result in surface damage. Use mild soap and warm
water for cleaning and protecting the life of Chicago Faucet products. For specific operation and maintenance refer to the
installation instructions and repair parts documents that are located at www.chicagofaucets.com.
Chicago Faucets, member of the Geberit Group, is the leading brand of commercial faucets and fittings in the United States,
offering a complete range of products for schools, laboratories, hospitals, office buildings, food service, airports and sport facilities.
