Brands:Chicago Faucets
Model:

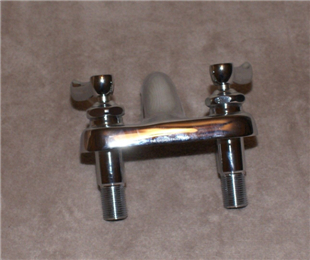

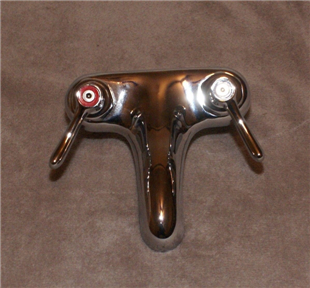

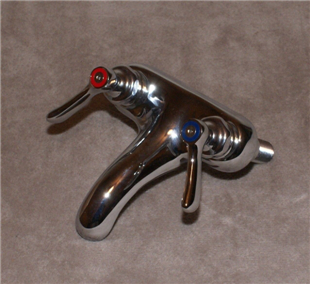

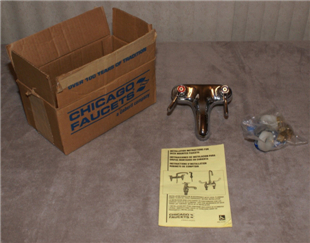

Description:Chicago Faucets 802-VABCP Hot and Cold Water Faucet
MECHANICAL FAUCETS
802-VABCP
Manual and Metering Faucets
Product Type
___________________________________________________

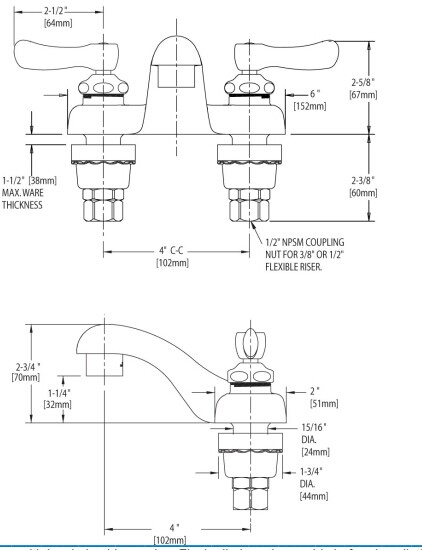

Deck Mounted 4" Fixed Centers Hot and Cold Water Sink
Faucet
Features & Specifications
___________________________________________________
• 4" Fixed Centers
• 2.2 GPM (8.3 L/min) Vandal Proof Aerator
• 2-3/8" Lever Handle
• Quaturn Compression Operating Cartridge
• 1/2" NPSM Supply Inlets and Coupling Nut for 3/8" or 1/2"
Flexible Riser
• 4" Center to Center Integral Cast Brass Spout
• ECAST® design provides durable brass construction with
total lead content equal to or less than 0.25% by weighted
average
• CFNow! Item Ships in 5 Days
Performance Specification ___________________________________________________
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140oF
Warranty
___________________________________________________
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
Codes & Standards
___________________________________________________
• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• California Health and Safety Code 116875 (AB1953-2006)
• Vermont Bill S.152
• NSF/ANSI 372 Low Lead Content
• ADA ANSI/ICC A117.1
Operation and Maintenance
________________________________________________________________________________________________________
Installation should be in accordance with local plumbing codes. Flush all pipes thoroughly before installation. After installation,
remove spout outlet or flow control and flush faucet thoroughly to clear any debris. Care should be taken when cleaning the
product. Do not use abrasive cleaners, chemicals or solvents as they can result in surface damage. Use mild soap and warm
water for cleaning and protecting the life of Chicago Faucet products. For specific operation and maintenance refer to the
installation instructions and repair parts documents that are located at www.chicagofaucets.com.
Chicago Faucets, member of the Geberit Group, is the leading brand of commercial faucets and fittings in the United States,
offering a complete range of products for schools, laboratories, hospitals, office buildings, food service, airports and sport facilities.
