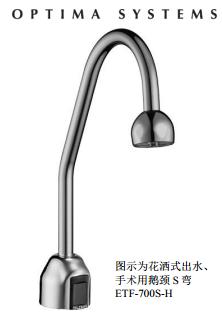

Description
Sensor Activated Electronic Gooseneck Hand Washing Faucet for tempered or
hot/cold water operation.
Flow Rate
2.2 gpm/8.3 Lpm Laminar Flow Spray Head
For 2.2 gpm/8.3 Lpm Shower Spray Head, specify “H” variation
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Sensor Activated, 24 VAC, Chrome Plated Brass, Gooseneck
Hand Washing Faucet with the following features:
• Splash-proof Circuit Control Module
• Sensor Range Adjustment Screw
• Troubleshooting LED Indicator Lights
• User friendly Variable Time Out Settings
• Filtered Solenoid Valve with serviceable Strainer Filter
• Bak-Chek® Tee for Hot/Cold Supply
• 120 VAC/24 VAC Transformer (specify Plug-in or Box Mount)
• Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor and Solenoid Leads
• Modular Quick-Release Sensor and Solenoid Connections
Variations
(Add suffix to Model Number for inclusion with Faucet)
• Spout and Spray Head Variations
 H Shower Spray Head (2.2 gpm/8.3 Lpm)
 S Surgical Bend Spout
•Trim Plate (must be specified)
 -4 Trim Plate for 4” Centerset Sink
 -8 Trim Plate for 8” Centerset Sink
•Transformer Type (must be specified)
 P Plug-in Transformer (furnished with ETF-233)
 B Box Mount (furnished with EL-248-40)
 LT Less Transformer
(specify Transformer separately - See Accessories)
•Temperature Mixing Valves (optional)
 ADM Above Deck Mechanical Mixing Valve
(only available for installation on 8” centerset sinks)
 BDM Below Deck Mechanical Mixing Valve
 BDT Below Deck Thermostatic Mixing Valve
Bak-Chek® Tee not required or provided when a Temperature Mixing Valve is
included with the faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
•Transformers
 ETF-233 120 VAC/24 VAC, 50/60 Hz (35 VA) - Plug-in
(will operate up to 2 faucets)
 EL-248-40 120 VAC/24 VAC, 50/60 HZ (40 VA) - Box Mount
(will operate up to 2 faucets)
 EL-154 120 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
 EL-208 120 VAC/24 VAC, 50/60 HZ (100 VA) - Foot Mount
(will operate up to 6 faucets)
 EL-342 240 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
• Spray Heads
 ETF-687 1.5 gpm/5.7 Lpm Laminar Flow Spray Head
 ETF-801 0.5 gpm/1.9 Lpm Spray Head
• Grid Strainer
 ETF-460-A Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of
OPTIMA Faucet Accessories and Variations.
