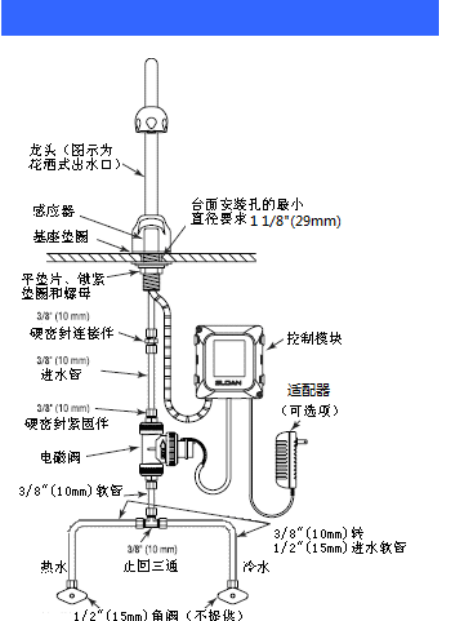

Description
Battery Powered, Sensor Activated Electronic Gooseneck Hand Washing Faucet for tempered or
hot/cold water operation.
Flow Rate
￡2.2 gpm/8.3 Lpm Laminar Flow Spray Head
For 2.2 gpm/8.3 Lpm Shower Spray Head, specify “H” variation
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Battery Powered, Sensor Activated, Chrome Plated Brass Gooseneck Hand
Washing Faucet with the following features:
• Splash-proof Circuit Control Module
• Isolated Latching Solenoid Operator, isolates magnetic components from water contact
• Sensor Range Adjustment Screw
• Low Battery LED Indicator Light
• User friendly Variable Time Out Settings
• Serviceable Filtered Solenoid Valve
• Bak-Chek® Tee for Hot/Cold Supply
• Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor Lead
• Includes four (4) AA-size Alkaline Batteries
• Appropriate Mounting Hardware included
• Optional 6 VDC Plug-in Adaptor available (Batteries act as backup when using optional
adaptor)
Variations
(Add suffix to Model Number for inclusion with Faucet)
• Spout and Spray Head Variations
￡ H Shower Spray Head (2.2 gpm/8.3 Lpm)
￡ S Surgical Bend Spout
• Trim Plate (must be specified)
￡ -4 Trim Plate for 4” Centerset Sink
￡ -8 Trim Plate for 8” Centerset Sink
• Temperature Mixing Valves (optional)
￡ ADM Above Deck Mechanical Mixing Valve
(only available for installation on 8” centerset sinks)
￡ BDM Below Deck Mechanical Mixing Valve
￡ BDT Below Deck Thermostatic Mixing Valve
Bak-Chek® Tee not required or provided when a Temperature Mixing Valve is included with the
faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
• Adaptor
￡ SFP-6 120 VAC/6 VDC Plug-in Adaptor
• Spray Heads
￡ ETF-687 1.5 gpm/5.7 Lpm Laminar Flow Spray Head
￡ ETF-801 0.5 gpm/1.9 Lpm Spray Head
• Grid Strainer
￡ ETF-460-A Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of OPTIMA Faucet
Accessories and Variations.
